Webhooks

What are webhooks?

Webhooks are a method for websites and applications to communicate with each other in real-time. They enable seamless integration between different platforms by sending data instantly when a specific event occurs, instead of constantly polling for updates.

In ChatThing, webhooks let you connect your bot to the rest of your stack. For example, a webhook can trigger a data-source sync from your CMS whenever an article is published, or send a Slack message to your team the moment a user escalates a conversation to a human.

Incoming vs outgoing

Webhooks in ChatThing fall into two buckets:

• Incoming - something on the internet calls us via a unique URL that ChatThing generates for you. The Sync trigger webhook is the only incoming type.
• Outgoing - ChatThing calls your URL when something happens inside the product. Sync success, Sync failure, Conversation started, Conversation escalated, Conversation claimed and Conversation released are all outgoing.

The distinction matters because the two flows have different settings. Incoming webhooks only need a secret (it's embedded in the URL you share with the outside system). Outgoing webhooks need a target URL to send the request to, plus a secret that you use to verify the request came from us.

Adding a webhook

Webhooks are configured per bot. To add one:

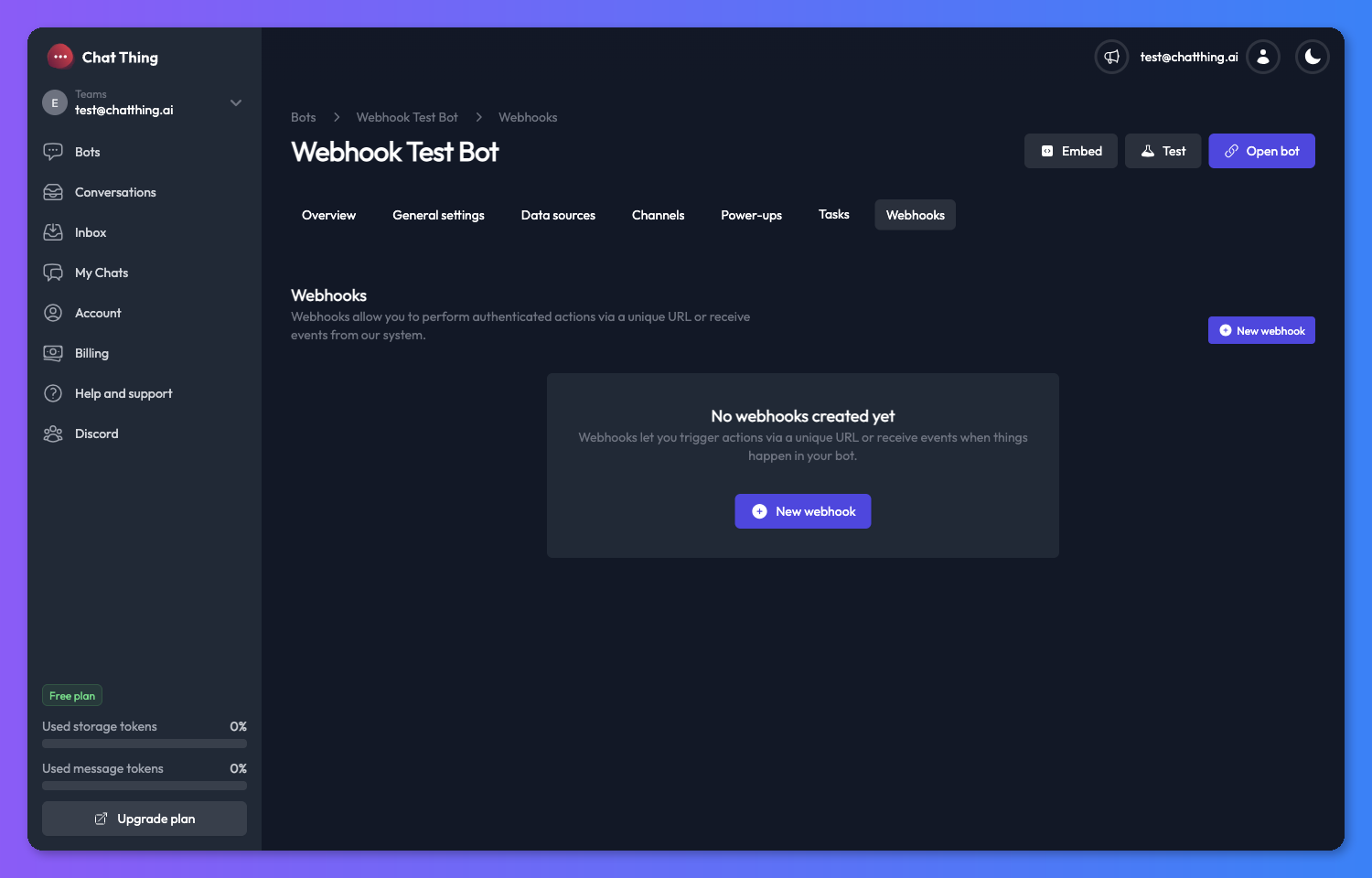

1. Open a bot and click the Webhooks tab.

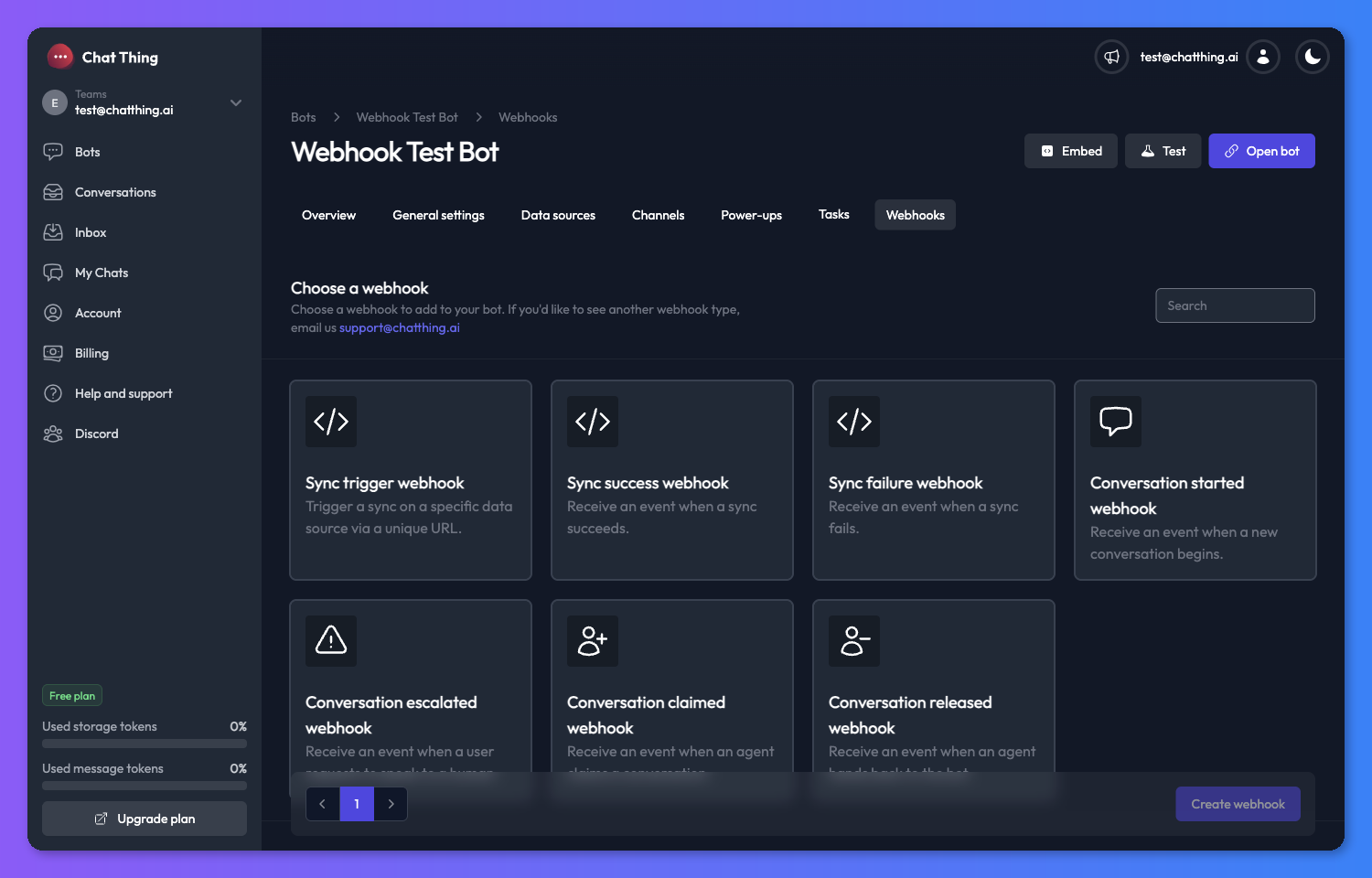

2. Click New webhook to open the webhook catalog.

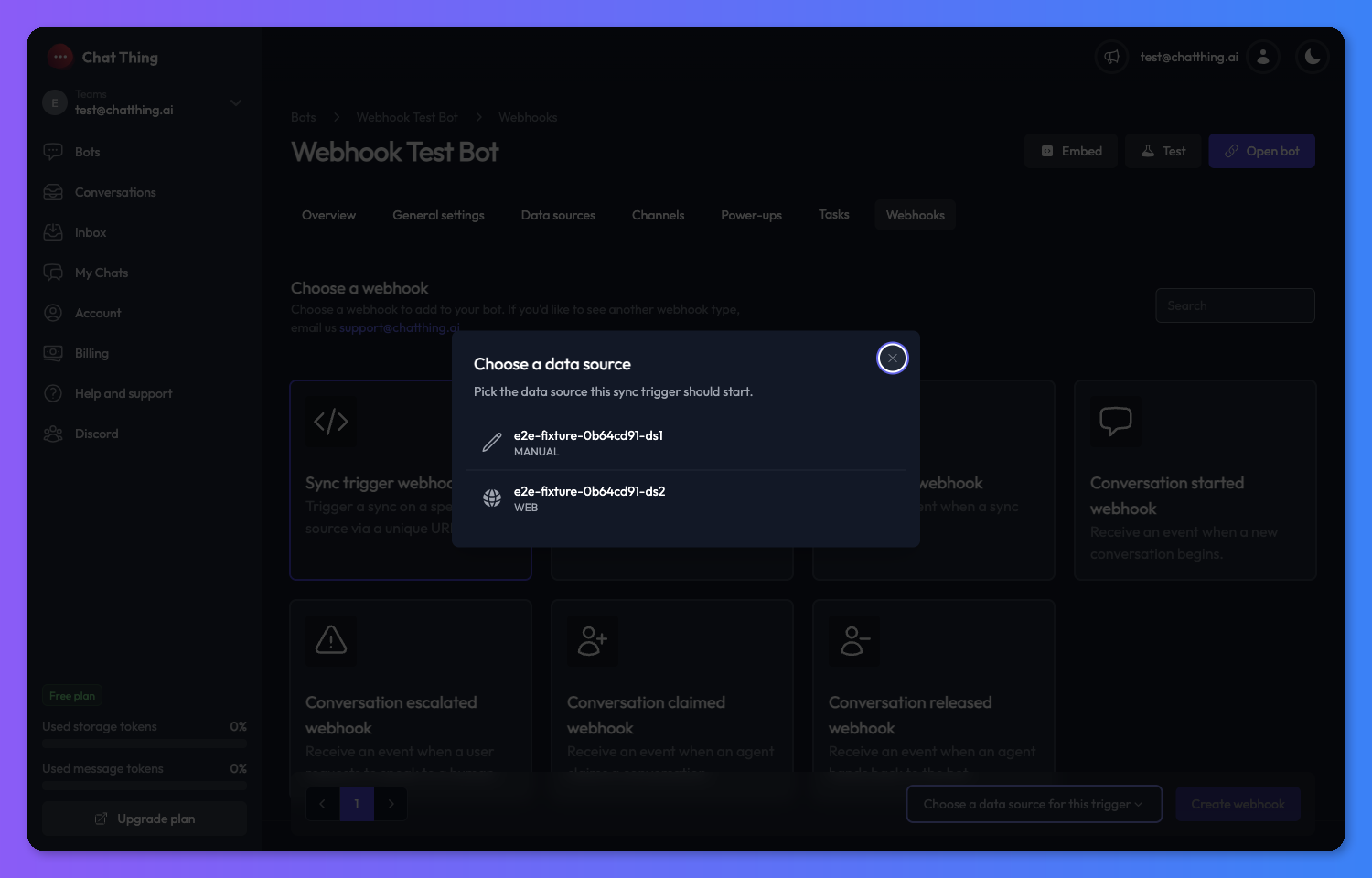

3. Search for, or pick, the webhook type you want. If you pick the Sync trigger webhook, an inline Data source picker appears so you can choose which source the hook will sync.

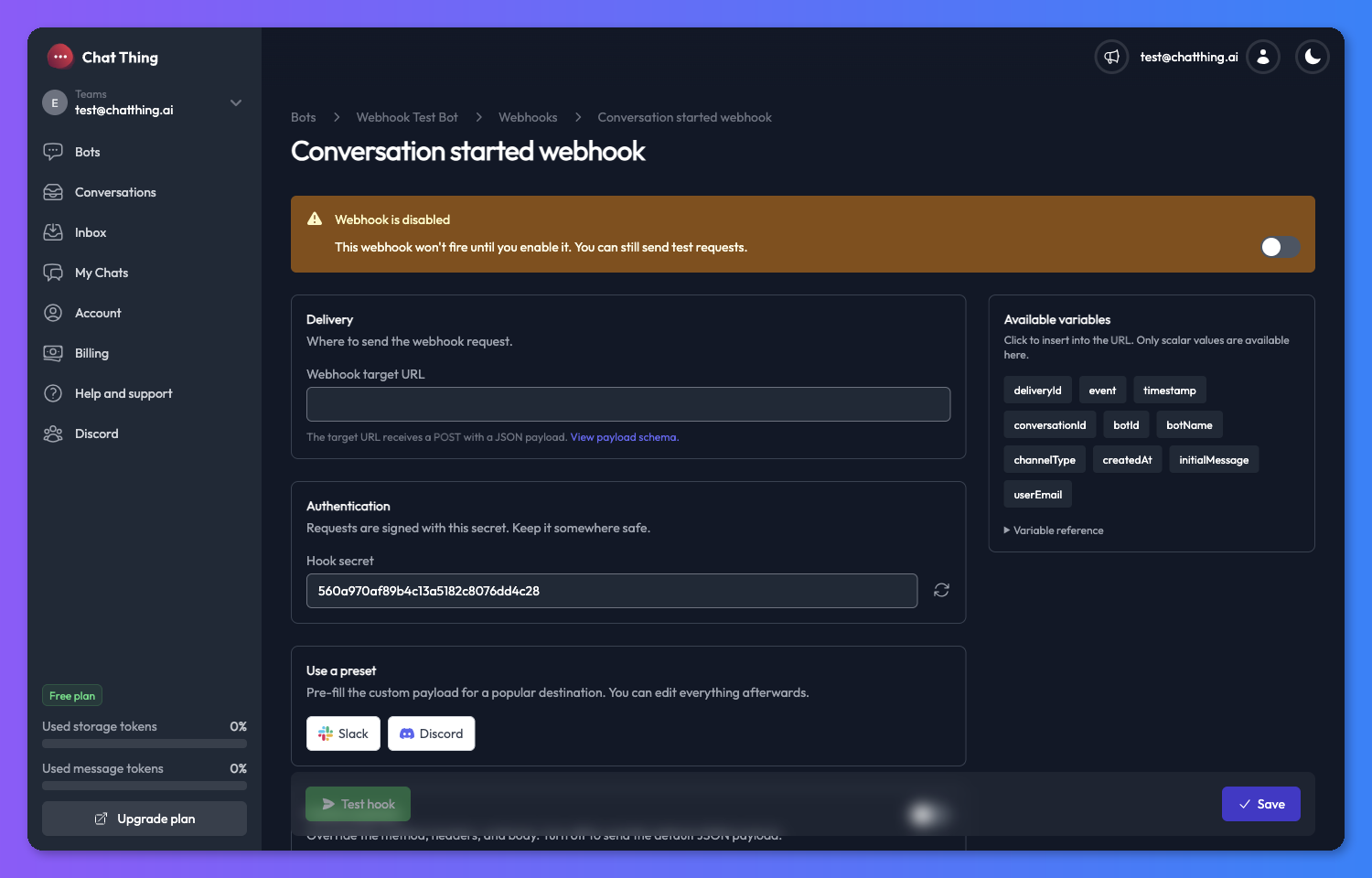

4. Click Create webhook. You'll land on the webhook's settings page with the hook pre-seeded and disabled.
5. Fill in the required fields and click Save.
6. Flip the Enabled toggle to start receiving or accepting traffic.

Managing your webhooks

Once a webhook exists you can manage it from two places - its card on the Webhooks tab, and its own settings page.

Enabling and disabling

Every webhook has an Enabled toggle, available both on the card and on the settings page header. Disabled webhooks behave differently depending on direction:

• For an outgoing webhook, disabled means ChatThing will not send any live events to your target URL. The Test hook button still works, so you can validate the configuration before going live.
• For an incoming webhook, disabled means requests to the webhook URL will be rejected rather than triggering a sync.

Opening settings

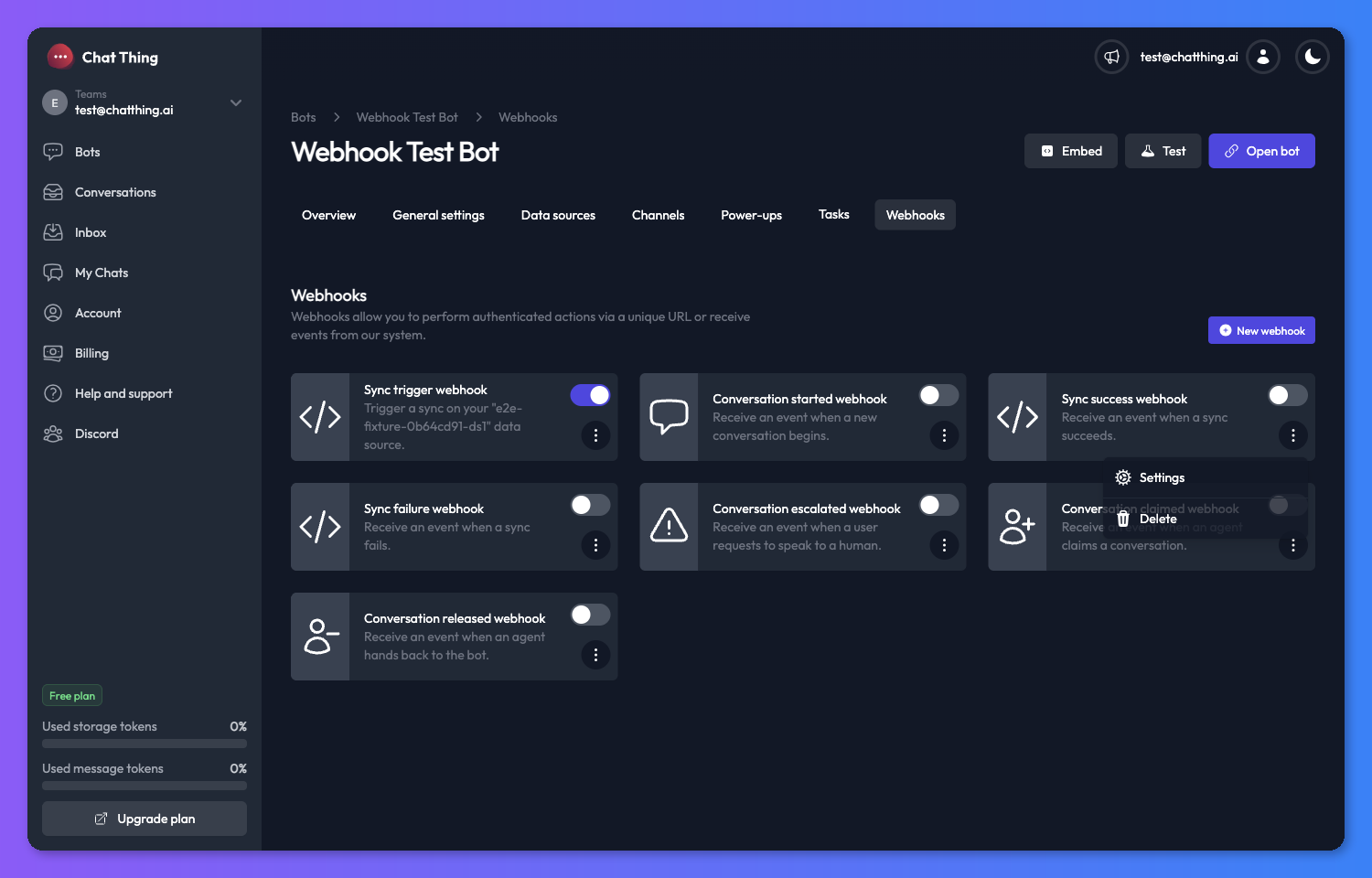

On any webhook card, click the kebab (⋮) menu and select Settings to open that webhook's settings page.

Deleting a webhook

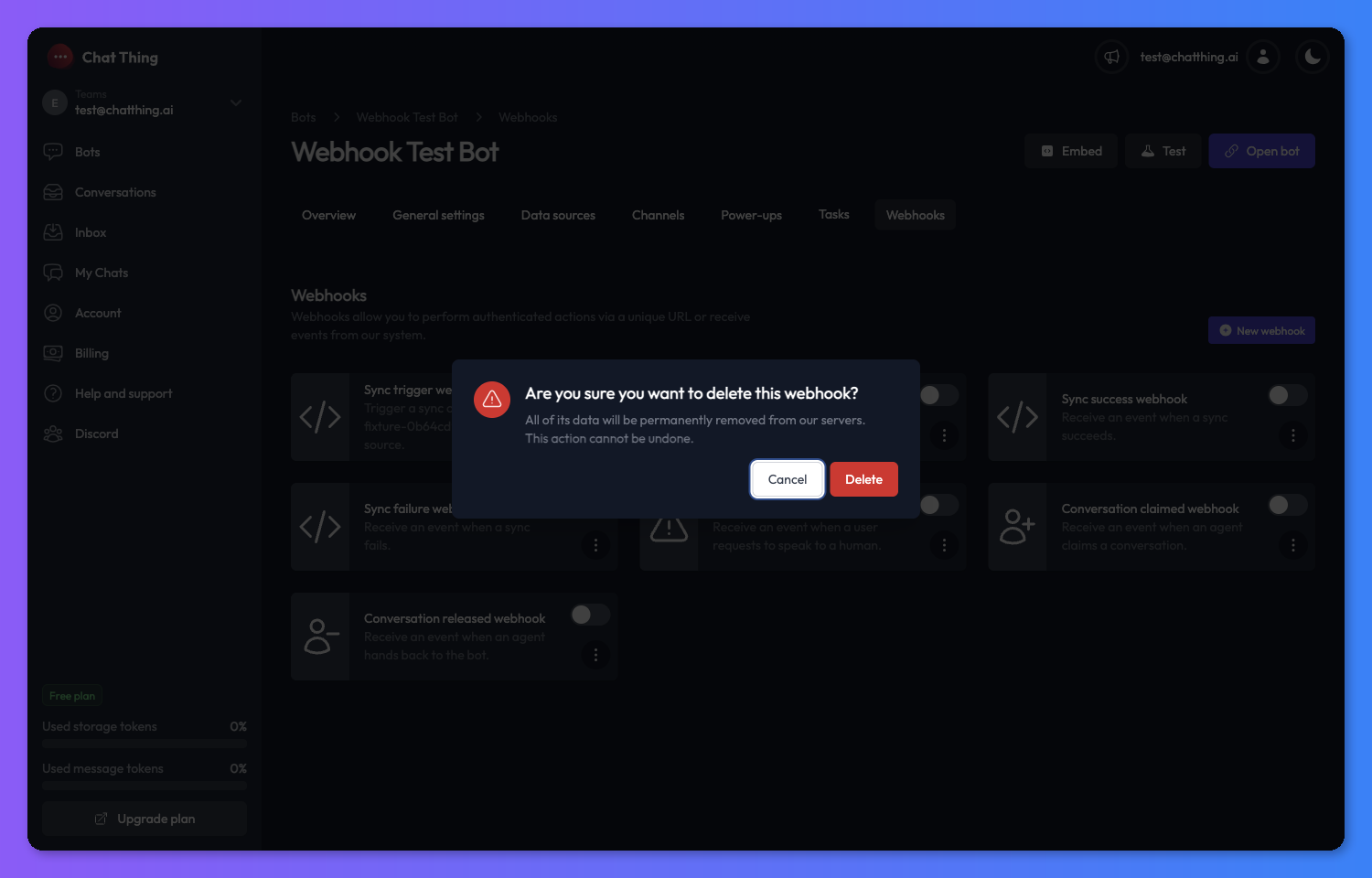

Open the kebab menu on the card and choose Delete. A confirmation modal appears - confirming it removes the webhook permanently and invalidates any incoming URL it was using.

Testing a webhook

The settings page has a Test hook button in the action bar.

• For outgoing webhooks, it sends a real request to the saved target URL using your saved headers and body. It runs against the saved configuration, so save any changes you want to test first. It fires even when the hook is disabled.
• For the Sync trigger webhook, the test button is labelled Open webhook URL and simply opens the unique webhook URL in a new tab so you can see the request flow end-to-end.

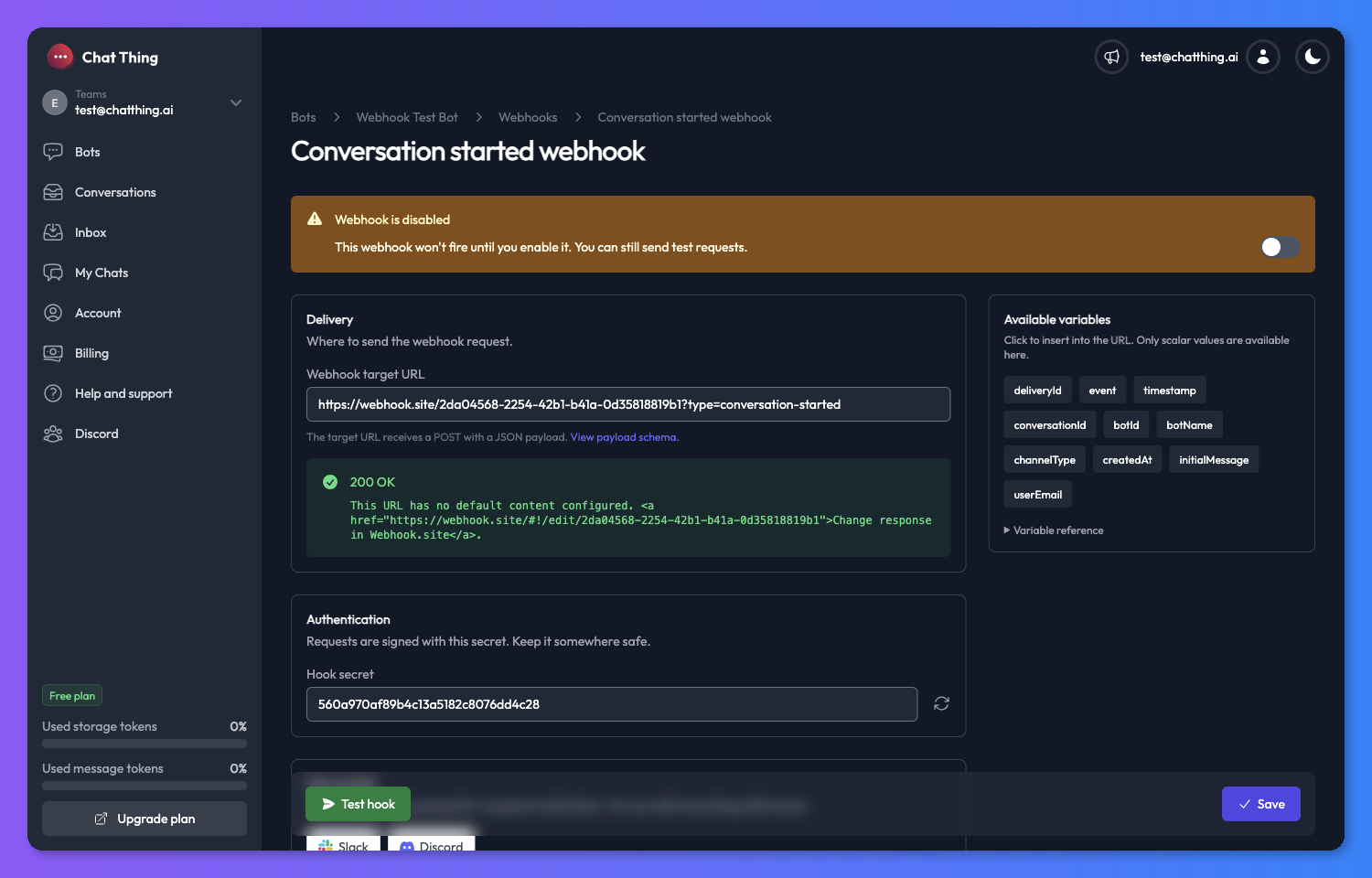

The response from an outgoing test is rendered at the top of the settings page, including the HTTP status and body.

Configuring an outgoing webhook

Outgoing webhook settings are split into three sections: Delivery, Authentication, and Custom payload, with a Variables sidebar on the right.

Delivery

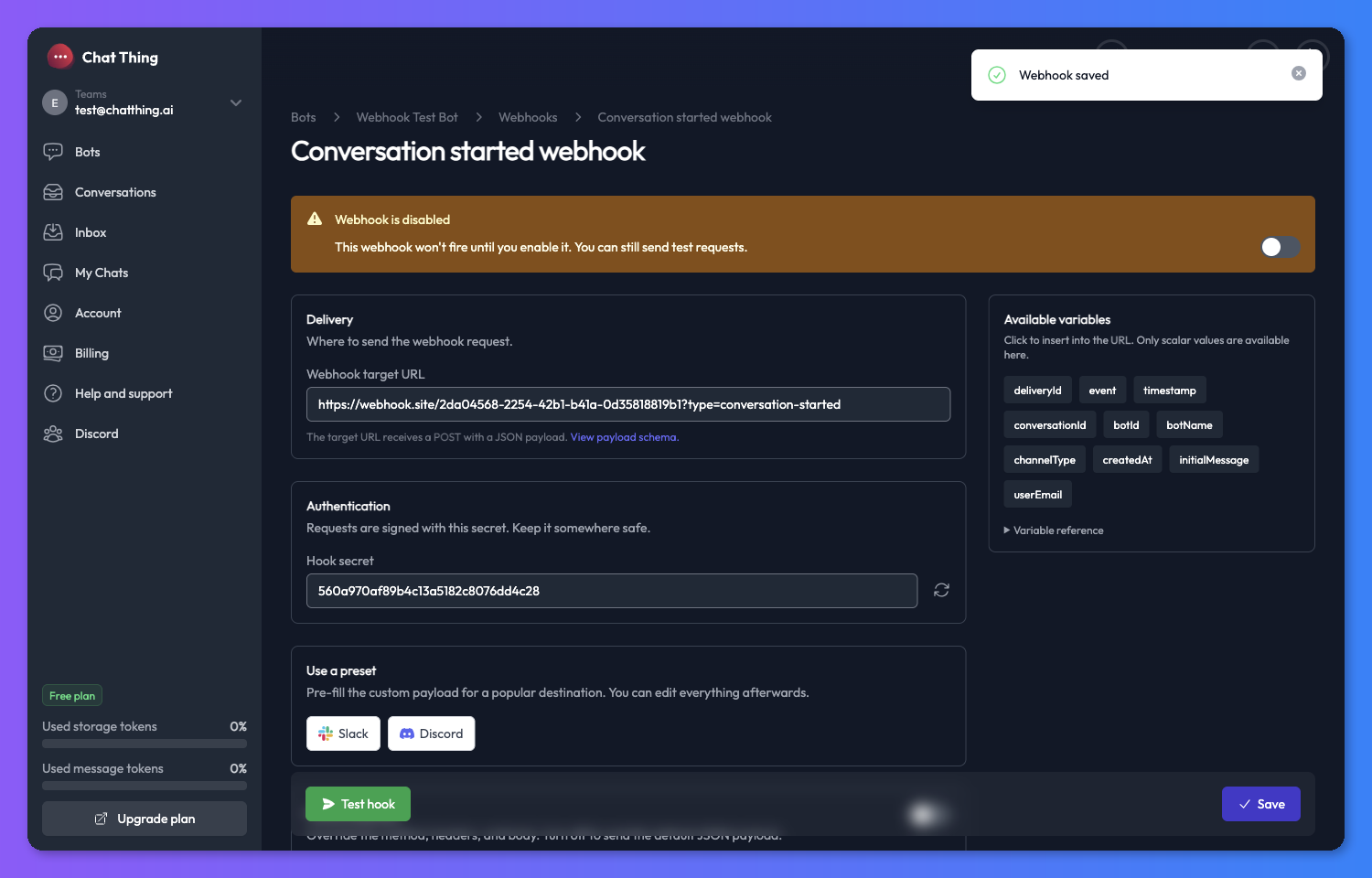

Set the URL we should send requests to.

• Webhook target URL - the full URL, including https://. ChatThing will send a POST here when the event fires (or your chosen method, if you've turned on custom payloads).
• Data source (sync success / sync failure only) - optional. Leave empty to fire for any data source on the bot, or pick one to scope the hook to a specific source.

Authentication

Every outgoing webhook needs a secret. We use it to sign the request so your server can confirm the payload actually came from us (see Security).

• Click the regenerate icon next to the secret field to get a fresh value.
• Rotating the secret invalidates the signatures on any in-flight deliveries - receivers checking signatures will start rejecting old requests until they pick up the new secret.

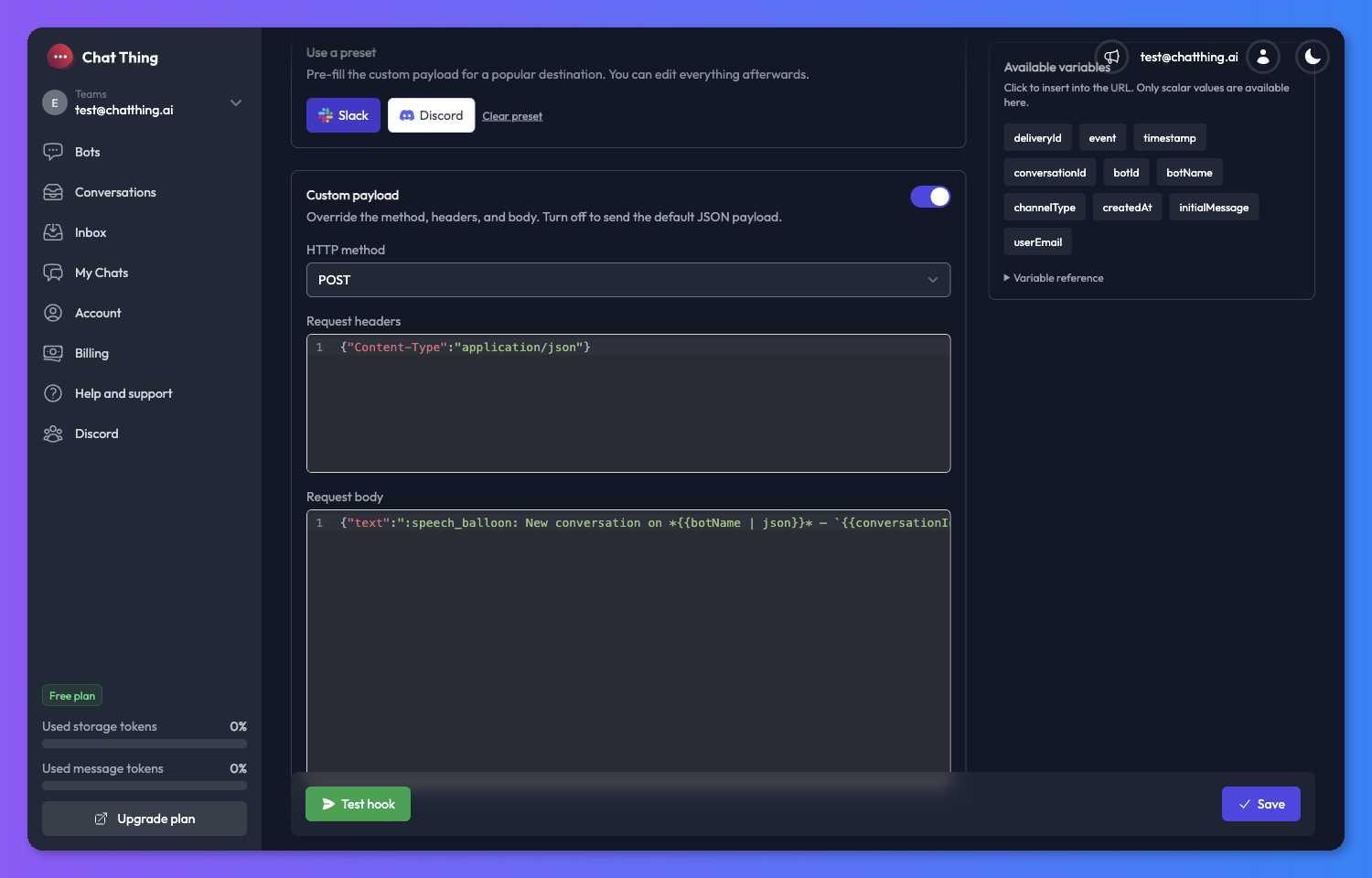

Custom payload

By default, each outgoing webhook sends a fixed JSON payload (documented in Available webhook types below) with a POST. Turn on Custom payload if you want to override any of that:

• HTTP method - choose POST, PUT, PATCH, GET, or DELETE.
• Request headers - JSON object of headers to send.
• Request body - the exact string we'll send as the body.

Turning the toggle off hides the override but keeps the fields visible (they're just not saved). The default payload resumes.

You can template the target URL, headers, and body with {{dot.path}} placeholders that resolve against the event payload. For example, on a Conversation started webhook, a body of:

{ "bot": "{{conversation.botName}}", "message": "{{conversation.initialMessage}}" }

…will be rendered with real values at delivery time.

If a placeholder doesn't resolve (for example, a typo like {{conversation.userData.emial}}), the literal {{...}} token is sent to your receiver. The Test hook button flags unresolved tokens before you go live.

Variables sidebar

The right-hand sidebar lists the variables available for the webhook type you're configuring. Click a variable chip to insert its {{dot.path}} into whichever field you last clicked.

• The palette filters based on context: when you're editing the target URL or headers, only scalar variables are shown (text / numbers / booleans). When you're editing the body, every variable is available, and non-scalars are marked with an object badge.
• Expand Variable reference at the bottom of the sidebar for a full list with descriptions - a handy source of truth for what each event carries.

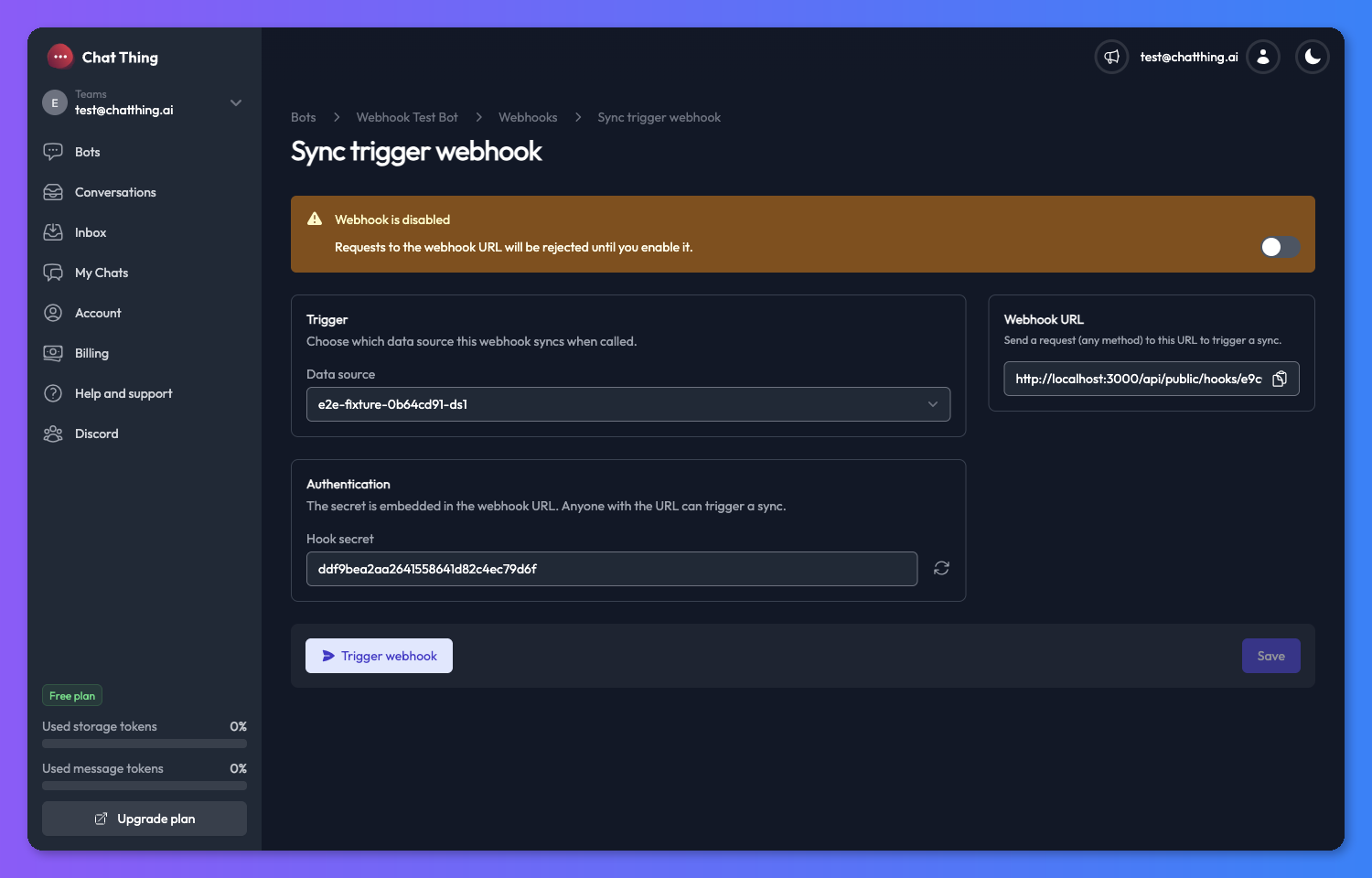

Configuring the sync trigger webhook

The Sync trigger webhook is the only incoming type, so its settings page is smaller.

Trigger

Pick the Data source you want this URL to sync when it's called.

Authentication

The secret is part of the webhook URL - there's no separate header to send. Regenerating the secret changes the URL and invalidates the previous one.

Webhook URL panel

The sidebar shows the full, ready-to-share URL in the form:

https://chatthing.ai/api/public/hooks/<hookId>/<secret>

How to call it

Any HTTP method works - GET, POST, or anything else your upstream system sends is fine.

curl --request GET \
  --url https://chatthing.ai/api/public/hooks/38362dae-a2b4-4484-8ced-920082a40b45/14e6c7131ce0465cb46ec109e7de0719

fetch(
  "https://chatthing.ai/api/public/hooks/38362dae-a2b4-4484-8ced-920082a40b45/14e6c7131ce0465cb46ec109e7de0719",
  { method: "GET" }
)
  .then((response) => response.json())
  .then((response) => console.log(response))
  .catch((err) => console.error(err));

import requests

url = "https://chatthing.ai/api/public/hooks/38362dae-a2b4-4484-8ced-920082a40b45/14e6c7131ce0465cb46ec109e7de0719"

response = requests.request("GET", url)

print(response.text)

A successful call returns:

{
  "success": true
}

Available webhook types

One reference per webhook type, in catalog order. Every outgoing payload also carries the delivery headers documented in Security.

Every outgoing payload body includes a top-level deliveryId (string) - the same UUID that is echoed in the X-ChatThing-Delivery-Id header. It is stable across retries, so receivers can de-dupe on it without having to read headers.

Sync trigger webhook

Fires when an external system calls the unique URL generated for this hook. Triggers a sync on the configured data source.

Response body

• success (boolean): whether the sync was successfully queued.

Example response:

{
  "success": true
}

Sync success webhook

Fires when a data source on the bot finishes syncing successfully. If you pick a data source on the hook, it only fires for that source; otherwise it fires for every source on the bot.

Payload

• success (boolean): always true for this event.
• results (object):
  • totalTokens (number): the total number of storage tokens consumed by this sync.
  • modifiedRows (number): the number of rows which have changed since the last sync.
  • totalDocuments (number): the total number of individual documents relating to this data source.
  • unmodifiedRows (number): the number of rows which haven't changed since the last sync.
  • totalDataSourceRows (number): the number of data source rows.
• bot (string): the name of the bot.
• dataSource (string): the name of the data source.

Example body:

{
  "success": true,
  "deliveryId": "d3c5a9e8-1b2c-4f5a-9b8d-1a2b3c4d5e6f",
  "results": {
    "totalTokens": 241245,
    "modifiedRows": 15,
    "totalDocuments": 20,
    "unmodifiedRows": 0,
    "totalDataSourceRows": 15
  },
  "bot": "Testing bot",
  "dataSource": "Data source one"
}

Sync failure webhook

Fires when a data source on the bot fails to sync. Same scoping rules as sync success - pick a data source to scope, or leave empty for any source on the bot.

Payload

• success (boolean): always false for this event.
• reason (string): why the sync failed.
• bot (string): the name of the bot.
• dataSource (string): the name of the data source.

Example body:

{
  "success": false,
  "deliveryId": "d3c5a9e8-1b2c-4f5a-9b8d-1a2b3c4d5e6f",
  "reason": "Over plan storage token limit, please upgrade plan",
  "bot": "Testing bot",
  "dataSource": "Data source one"
}

Conversation webhooks

The remaining four webhook types fire during the conversation lifecycle. They are useful for integrating with CRMs, ticketing systems, and monitoring tools. To learn more about the lifecycle itself, see Human takeover.

Conversation started webhook

Fires when a new conversation is created with your bot.

Payload

• event (string): "conversation.started".
• timestamp (string): ISO 8601 timestamp.
• conversation (object):
  • id (string): the conversation ID.
  • botId (string): the bot ID.
  • botName (string): the name of the bot.
  • initialMessage (string) (optional).
  • channelType (string): the channel type (e.g. "web", "slack").
  • createdAt (string): ISO 8601 timestamp of when the conversation was created.

Example body:

{
  "event": "conversation.started",
  "deliveryId": "d3c5a9e8-1b2c-4f5a-9b8d-1a2b3c4d5e6f",
  "timestamp": "2026-03-10T12:00:00.000Z",
  "conversation": {
    "id": "abc-123",
    "botId": "def-456",
    "botName": "My Bot",
    "channelType": "web",
    "initialMessage": "What are your opening times?",
    "createdAt": "2026-03-10T12:00:00.000Z"
  }
}

Conversation escalated webhook

Fires when a user requests to speak to a human agent (via the "Talk to a human" function). Fires for all channels, regardless of whether our team-inbox takeover UI is enabled for the bot.

Payload

• event (string): "conversation.escalated".
• timestamp (string): ISO 8601 timestamp.
• conversation (object):
  • id (string): the conversation ID.
  • botId (string): the bot ID.
  • botName (string): the name of the bot.
  • channelType (string): the channel type.
  • state (string): "Escalated".
  • userData (object): any user data collected during the conversation.
• userEmail (string): the email address provided by the user.

Example body:

{
  "event": "conversation.escalated",
  "deliveryId": "d3c5a9e8-1b2c-4f5a-9b8d-1a2b3c4d5e6f",
  "timestamp": "2026-03-10T12:05:00.000Z",
  "conversation": {
    "id": "abc-123",
    "botId": "def-456",
    "botName": "My Bot",
    "channelType": "web",
    "state": "Escalated",
    "userData": {}
  },
  "userEmail": "user@example.com"
}

Conversation claimed webhook

Fires when an agent claims (takes over) a conversation.

Payload

• event (string): "conversation.claimed".
• timestamp (string): ISO 8601 timestamp.
• conversation (object):
  • id (string): the conversation ID.
  • botId (string): the bot ID.
  • botName (string): the name of the bot.
  • channelType (string): the channel type.
  • state (string): "Active".
• agent (object):
  • name (string): the agent's display name.
  • email (string): the agent's email address.

Example body:

{
  "event": "conversation.claimed",
  "deliveryId": "d3c5a9e8-1b2c-4f5a-9b8d-1a2b3c4d5e6f",
  "timestamp": "2026-03-10T12:10:00.000Z",
  "conversation": {
    "id": "abc-123",
    "botId": "def-456",
    "botName": "My Bot",
    "channelType": "web",
    "state": "Active"
  },
  "agent": {
    "name": "Jane",
    "email": "jane@example.com"
  }
}

Conversation released webhook

Fires when an agent hands a conversation back to the bot.

Payload

• event (string): "conversation.released".
• timestamp (string): ISO 8601 timestamp.
• conversation (object):
  • id (string): the conversation ID.
  • botId (string): the bot ID.
  • botName (string): the name of the bot.
  • channelType (string): the channel type.
  • state (string): "Resolved".
• agent (object):
  • name (string): the agent's display name.
  • email (string): the agent's email address.

Example body:

{
  "event": "conversation.released",
  "deliveryId": "d3c5a9e8-1b2c-4f5a-9b8d-1a2b3c4d5e6f",
  "timestamp": "2026-03-10T12:15:00.000Z",
  "conversation": {
    "id": "abc-123",
    "botId": "def-456",
    "botName": "My Bot",
    "channelType": "web",
    "state": "Resolved"
  },
  "agent": {
    "name": "Jane",
    "email": "jane@example.com"
  }
}

Security

Every outgoing webhook is signed with your secret. Verifying the signature proves the request came from ChatThing and wasn't tampered with in transit. If you don't plan to verify (for example, you're just hitting webhook.site to check it's working), you can skip this section.

Request headers

Every outgoing webhook carries these headers:

Verifying the signature

Compute an HMAC-SHA256 of the exact bytes in the request body using your hook secret, hex-encode it, and prefix it with sha256=. Compare that to the X-ChatThing-Signature header using a constant-time comparison.

import crypto from "node:crypto";

function verifyChatThingSignature(rawBody, headerValue, secret) {
  const expected =
    "sha256=" +
    crypto.createHmac("sha256", secret).update(rawBody, "utf8").digest("hex");
  const a = Buffer.from(expected);
  const b = Buffer.from(headerValue ?? "");
  return a.length === b.length && crypto.timingSafeEqual(a, b);
}

import hmac
import hashlib

def verify_chatthing_signature(raw_body: bytes, header_value: str, secret: str) -> bool:
    expected = "sha256=" + hmac.new(
        secret.encode("utf-8"), raw_body, hashlib.sha256
    ).hexdigest()
    return hmac.compare_digest(expected, header_value or "")

Verify against the raw request body - parsing the body to JSON and re-serialising will change the bytes and invalidate the signature.

Retries and timeouts

If your receiver is briefly unavailable, ChatThing retries delivery automatically:

• Up to 5 attempts with exponential backoff (~30s → 1m → 2m → 4m → 8m).
• A retry reuses the same X-ChatThing-Delivery-Id, so receivers that dedupe on the id will not double-process an event.
• Requests time out after 10 seconds. A non-responsive receiver does not pin a worker.

Responses with a 3xx status are not followed - configure your webhook to point at the final URL directly.

Troubleshooting & tips

My webhook isn't firing. Double-check the Enabled toggle on the webhook card or settings page. Disabled outgoing webhooks won't send live events (but the Test hook button still works).

My receiver is getting {{conversation.id}} literally. That means the placeholder didn't resolve at delivery time - usually a typo in the path. Pick variables from the sidebar rather than typing them, and watch the Test hook result for the "unresolved template tokens" warning.

I just want to smoke-test a webhook. webhook.site is a free receiver that gives you a one-off URL and shows every request it receives. Point an outgoing webhook at it, hit Test hook, and you'll see exactly what your server would get.

Need something else?

We're always looking to improve ChatThing, so if you need a webhook which isn't described above please email us: support@chatthing.ai
